ADZ ADAPTER FOR KHZ & SZD CYLINDERS

Home | Components |  Cylinder and Slide Accessories  |  ADZ ADAPTER FOR KHZ & SZD CYLINDERS

Search

ADZ-ex

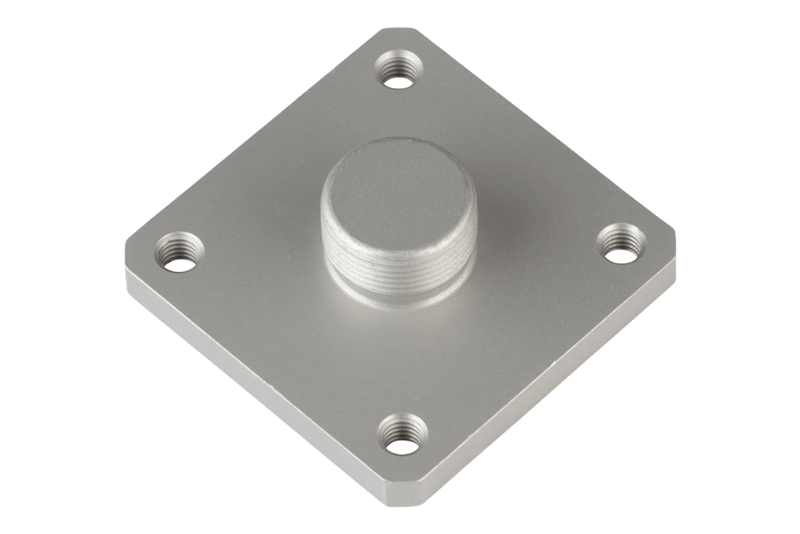

ADZ ADAPTER connects an ASS cylinder to a VLR extension rod


Part No.DescriptionCompatible With VLRCompatible With KHZA [mm]B [mm]C [mm]D [mm]MaterialWeight [g]
1-725-03-00ADZ 14-12VLR 14KHZ/SZD 12M 12 x 121.925M3Aluminum11
1-725-06-00ADZ 20-20VLR 20KHZ/SZD 20M 17 x 136.135M5Aluminum21.8
1-725-09-00ADZ 20-32VLR 20KHZ/SZD 32M 17 x 148.145M5Aluminum33.6
1-725-12-00ADZ 30-32VLR 30KHZ/SZD 32M 27 x 148.145M5Aluminum42.2
