WKA – Angle Arm

320-WKA-B_1

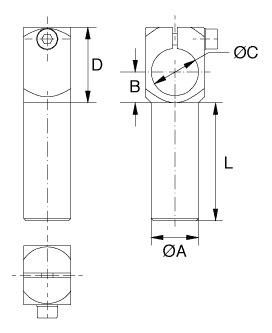

Dimensions:

Part No.DescriptionL SystemX SystemJU SystemA [mm]B [mm]C [mm]D [mm]L [mm]MaterialWeight [g]
1-320-03-00WKA 10-10-30xx-107101930Aluminum10.0
1-320-06-00WKA 10-10-60xx-107101960Aluminum13.3
1-320-09-00WKA 10-10-90xx-107101990Aluminum21.0
1-320-12-00WKA 14-14-40-x-1410142640Aluminum24.5
1-320-15-00WKA 14-14-80-x-1410142680Aluminum32.5
1-320-18-00WKA 14-14-120-x-14101426120Aluminum41.0
1-320-21-00WKA 20-20-50-xx2013203250Aluminum48.0
1-320-24-00WKA 20-20-100-xx20132032100Aluminum64.0
1-320-27-00WKA 20-20-150-xx20132032150Aluminum79.0
1-320-30-00WKA 30-30-80-xx3019304480Aluminum223.0
1-320-33-00WKA 30-30-140-xx30193044140Aluminum279.0
1-320-36-00WKA 30-30-200-xx30193044200Aluminum391.0
