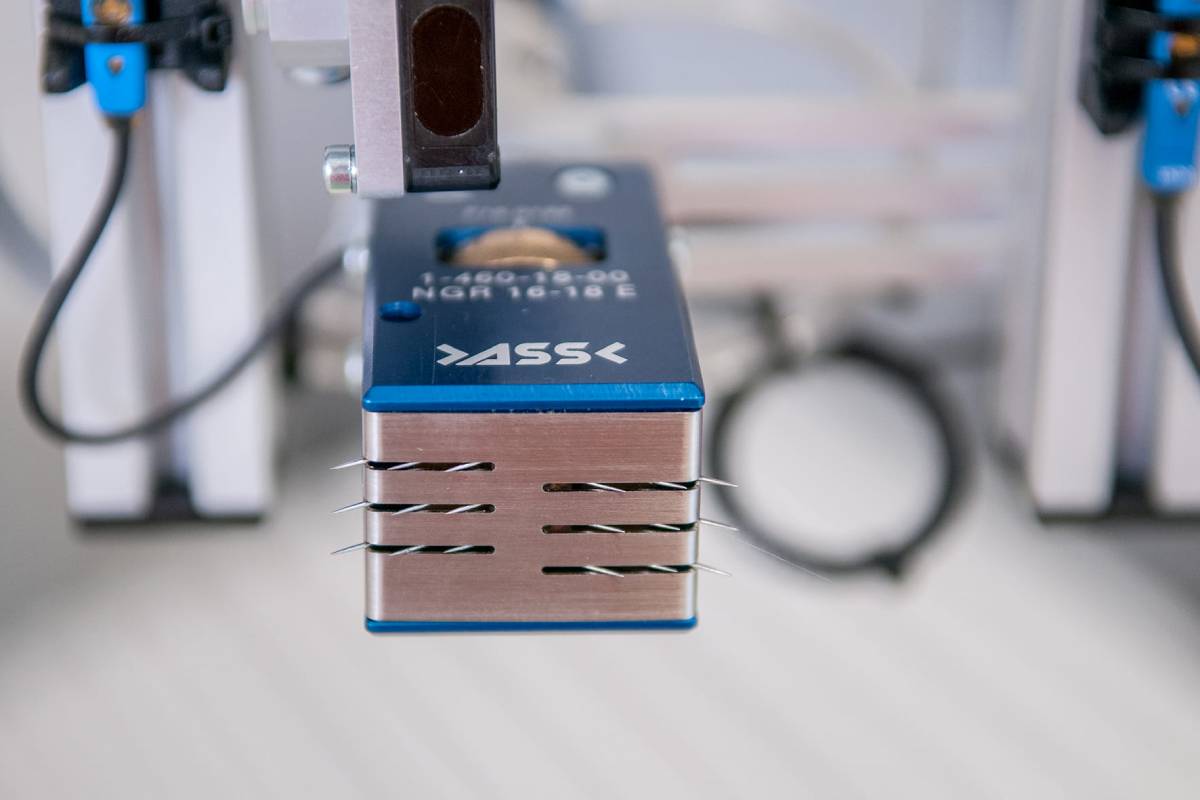

The NGR 16 features 18 needles. The needle depth is adjustable from 1.5-2.7 mm in 0.05mm steps via a
thumb wheel. It allows needle depth adjustment on the fly. Single acting mechanism just one airline is required to operate the gripper. NGR 16 features a slot for an ICS 8 sensor to provide a needles retract signal.
Shown on the right is the EZ version designed for thin materials. It features thinner needles (0.7 mm) and a contoured sheet metal bracket.
| Part No. | Description | Needles | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | Air Connection | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1-460-18-00 | NGR 16-18E | 18 | 36/46 | 31 | 0-2 | 63 | 37 | 20 | M 5 | 230 |
| 1-460-19-00 | NGR 16-18 EZ | 18 | 51 | 30 | 0-1.75 | 63 | 37 | 20 | M5 | 255 |
