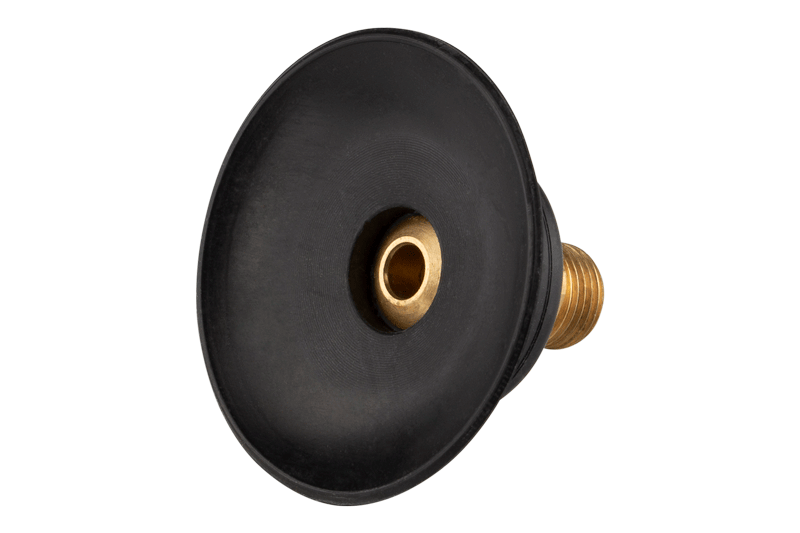

VS 1 N Single Bellow Vacuum Cup


Dimensions¬†
Part No.DescriptionA [mm]B [mm]B1 [mm]B2 [mm]C [mm] ["]D [mm]SWE [mm]SWF [mm]Weight [g]
1-221-02-12VS 1-2-N52498.5M557~2.4
1-221-03-12VS 1-3.5-N53.5498.5M557~2.4
1-221-05-12VS 1-5-N556.511.511M55722.6
1-221-08-12VS 1-8-N5871211M55722.8
1-221-10-12VS 1-10-N5107.512.511M55722.9
1-221-15-12VS 1-15-N51581311.5M55723.1
1-221-20-13VS 1-20-N820101513G1/8513312.2
1-221-25-13VS 1-25-N825141816G1/8813412.7
1-221-30-13VS 1-30-N830121715.5G1/8813413.8
1-221-40-13VS 1-40-N840141815.5G1/8813417.6
1-221-50-13VS 1-50-N850152016.5G1/8813521.7
1-221-60-14VS 1-60-N460162318G1/41017550.6
1-221-80-14VS 1-80-N4801825.520G1/41017578.3
1-221-95-14VS 1-95-N4951926.521.5G1/410175116.9
Data¬†
Part No.Cup with AdapterCup OnlyPart No Cup OnlyMaterialOperating [cm2]Holding Force [N]PushFitTapped
1-221-02-22VS 1-2-S5VN 1-2-S1-221-02-20Silicone0.020.1x-
1-221-03-22VS 1-3.5-S5VN 1-3.5-S1-221-03-20Silicone0.070.4x-
1-221-05-22VS 1-5-S5VN 1-5-S1-221-05-20Silicone0.130.7x-
1-221-08-22VS 1-8-S5VN 1-8-S1-221-08-20Silicone0.382.3x-
1-221-10-22VS 1-10-S5VN 1-10-S1-221-10-20Silicone0.674x-
1-221-15-22VS 1-15-S5VN 1-15-S1-221-15-20Silicone1.549.1x-
1-221-20-23VS 1-20-S8VN 1-20-S1-221-20-20Silicone2.6315.5x-
1-221-25-23VS 1-25-S8VN 1-25-S1-221-25-20Silicone4.5226.6x-
1-221-30-23VS 1-30-S8VN 1-30-S1-221-30-20Silicone5.7333.7x-
1-221-40-23VS 1-40-S8VN 1-40-S1-221-40-20Silicone9.7657.4x-
1-221-50-23VS 1-50-S8VN 1-50-S1-221-50-20Silicone15.5591.5x-
1-221-60-24VS 1-60-S4VN 1-60-S1-221-60-20Silicone21.24125-x
1-221-80-24VS 1-80-S4VN 1-80-S1-221-80-20Silicone44.18260-x
1-221-95-24VS 1-95-S4VN 1-95-S1-221-95-20Silicone59.45349.9-x
