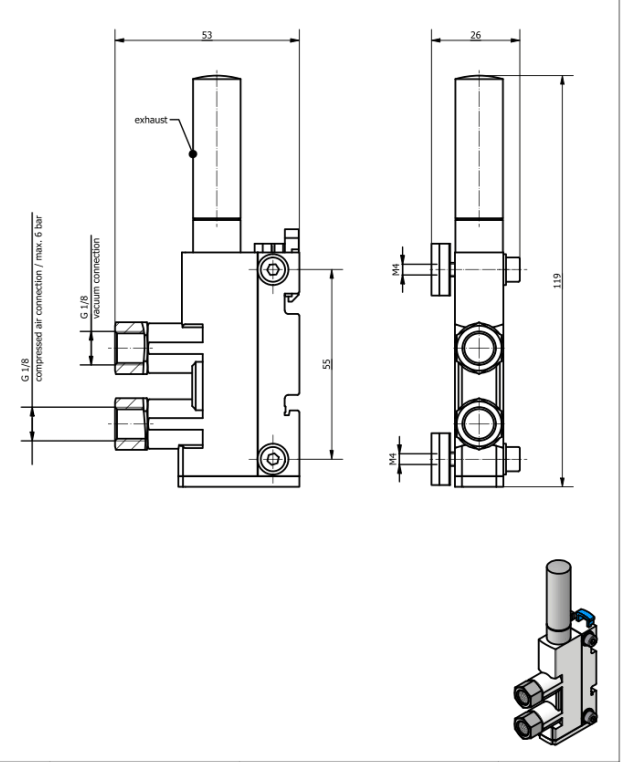

- Drawing:
- P compressed air connection
- U vacuum connection
- R exhaust
Integrated blow-off feature sends a short impulse of air through the vacuum line after supply air is shot off.
Data:
| Part No. | Description | Air Pressure [bar] | Vacuum at 6 Bar | Vacuum Volume [L/min) | Material |
|---|---|---|---|---|---|
| 1-866-02-00 | VAE 10 | 1.5 - 10 | -0.85 | ca. 35 | Aluminum |
