KBV Square Joint Connector

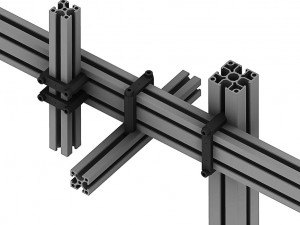

KBVsample

Part No.DescriptionA [mm]B [mm]C [mm]D [mm]E [mm]MaterialWeight [g]
1-120-05-00KBV L 10-189.518153225Aluminum23.1
1-120-10-00KBV L 18-1817.518233233Aluminum28.1
1-120-13-00KBV X 10-259.525154527Aluminum37
1-120-14-00KBV X 18-2517.525234535Aluminum32
1-120-15-00KBV X 25-2524.525304541Aluminum45.7
1-120-20-00KBV X 50-2549.525554565Aluminum64.5
1-120-25-00KBV X 25-5024.550307040Aluminum80.1
1-120-32-00KBV JU 40-4039.540506060Aluminum85.1
1-120-37-00KBV JU 40-8039.5805010060Aluminum109.9
1-120-42-00KBV JU 80-4079.5409060104Aluminum128.8
