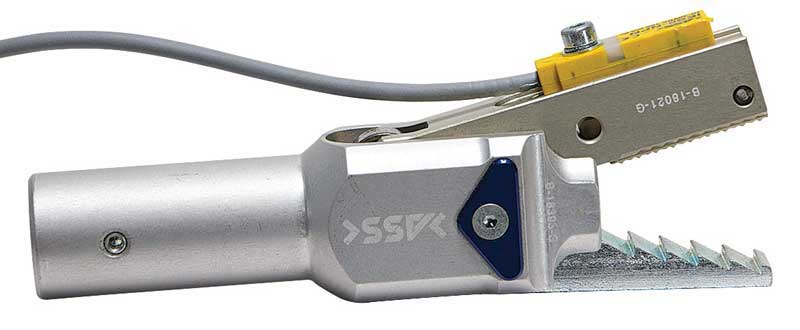

GRZ 20-16-SCS With Saw Jaws & Sensor


Extension cable KG 8-3 2m (6 feet) length is included

Remarks:

  • Spring return / single action
  • Sensor IES 8, 3 pin male plug in PNP or NPN
  • Lower jaw features an
    aggressive serration
  • Closing force 87 psi (6 bar).
  • Maximum air pressure is 87 psi
    (6 bar)
  • Use dry and filtered air only
Part No.DescriptionClosing Force Max. [N]X-SystemJU-SystemA [mm]B [mm]C [mm]D [mm]E [mm]E1 [mm]G ["]L [mm]Weight [g]
1-415-42-00GRZ 20-16 SCS PNP65xx204311627233G 1/825129
1-415-44-00GRZ 20-16 SCS NPN65xx204311627233G 1/825129
