KVB G CROSS CONNECTOR WITH SWIVEL

Home | Components | Clamps | KVB G CROSS CONNECTOR WITH SWIVEL

Search

Part No.	Description	A	B	C	D	E	F	Material	Weight
		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	AL	[g]
1-116-46-00	KVB G X 10	10	35	23	11	12	30	AL	47
1-116-56-00	KVB G X 14	14	38	27	13	15	33	AL	50
1-116-58-00	KVB G JU 14	14	47	27	13	15	35	AL	78
1-116-66-00	KVB G X 20	20	50	37	17	20	45	AL	137
1-116-68-00	KVB G JU 20	20	55	38	19	20	45	AL	149

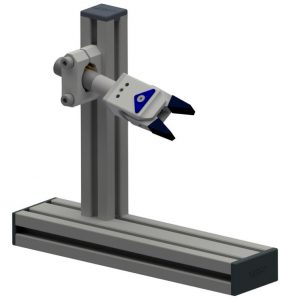

The cross connector allows some flexibility in positioning grippers or vacuum cups. The lower bolt fixes the position of the clamp on the profile. The swivel is still adjustable until the upper screw is tightened.
