Can be used with GRF 90 or 95 style gripper finger for clamping the part or ZTB Centering Pins to position a part
Now available in 5 versions
- PA = Bare Plastic
- EP S = EP coated
- EP B = EP coated extra wide
- PA K = Bare Plastic curved
- PA K EP = EP coated curved

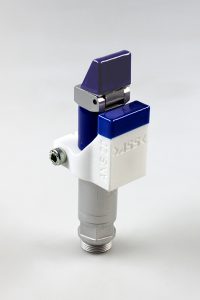

In conjunction with the EP coating this finger gripper bracket is ideally suited for handling sensitive parts. The curved versions are designed for contoured parts.
| Part No. | Description | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | Material | Weight [g] | R1 [mm] | R2 [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1-490-02-00 | ANS 10 PA | 10 | 20 | 31 | 25.5 | - | Plastic | 5 | ||
| 1-490-20-00-1 | ANS 14 PA | 14 | 24 | 33 | 10 | - | Plastic | 17 | ||
| 1-490-09-00-1 | ANS 20 PA | 20 | 30 | 41 | 27 | - | Plastic | 16 | ||
| 1-490-12-00-1 | ANS 30 PA | 30 | 40 | 45 | 27 | - | Plastic | 38 | ||
| 1-490-50-00 | ANS 14 PA EP S | 14 | 20 | 34 | 26 | 9 | Plastic / EP | 7 | ||
| 1-490-51-00 | ANS 20 PA EP S | 20 | 30 | 42 | 38 | 10 | Plastic / EP | 17 | ||
| 1-490-52-00 | ANS 20 PA EP B | 20 | 30 | 47 | 38 | 15 | Plastic / EP | 24 | ||
| 1-490-53-00 | ANS 30 PA EP B | 30 | 44 | 65 | 38 | 23 | Plastic / EP | 39 | ||
| 1-490-70-00 | ANS 14 PA K | 14 | 20 | 33 | 24.5 | - | Plastic | 7 | 24.5 | 4 |
| 1-490-71-00 | ANS 20 PA K | 20 | 30 | 41 | 35.5 | - | Plastic | 17 | 35.5 | 4.5 |
| 1-490-75-00 | ANS 14 PA K EP | 14 | 20 | 33 | 24.5 | - | Plastic / EP | 17 | 20 | 4 |
| 1-490-76-00 | ANS 20 PA K EP | 20 | 30 | 41 | 35.5 | 35.5 | Plastic / EP | 17 | 35.5 | 4.5 |
