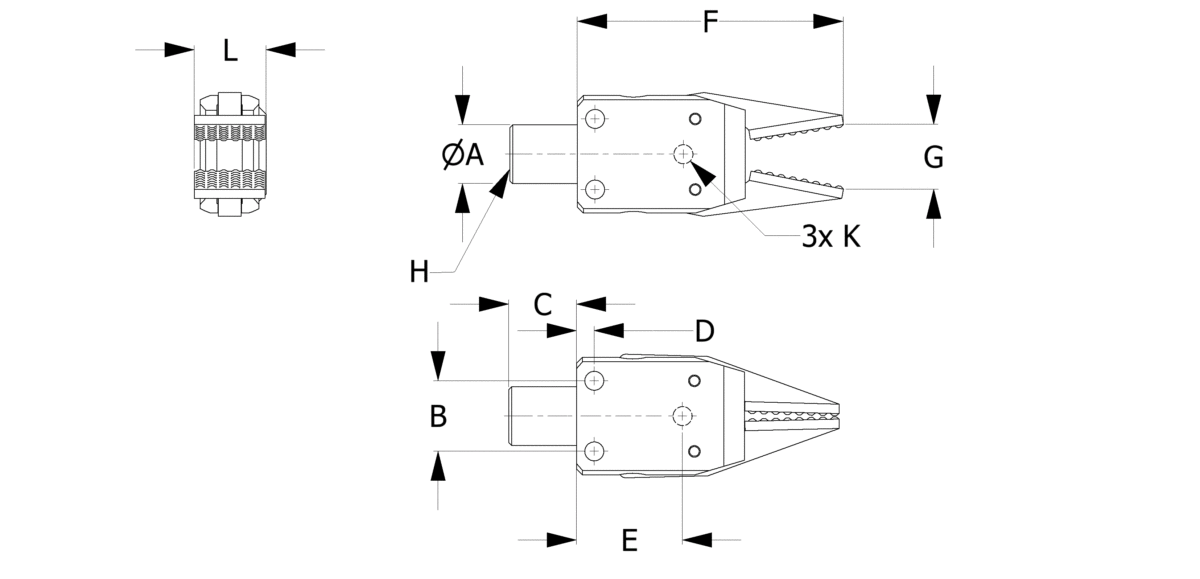

Part No. | A | B | C | D | E | F | G | H | K | L | Weight |
---|---|---|---|---|---|---|---|---|---|---|---|
1-408-04-00 | 10 | 12 | 11.5 | 3 | 18 | 45 | 11 | M5 | M4 | 12 | 17 |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [g} |
- Wide jaw mini gripper
- Fits in all 10 mm clamps
- Miniature size
- Serrated jaws
- One of the pictures shows the gripper with the optional VLU extension
