| Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | Description | A1 [mm] | A2 [mm] | B [mm] | B1 [mm] | B2 [mm] | C [mm] ["] | D [mm] | SWE [mm] | SWF [mm] | Weight [g] |
| 1-222-10-12 | VS 2-10-N5 | 11.5 | 12.5 | 14 | 19 | 13.5 | M5 | 5 | 7 | 2 | 3.2 |
| 1-222-15-12 | VS 2-15-N5 | 16 | 17 | 16 | 21.5 | 13.5 | M5 | 5 | 7 | 2 | 3.4 |
| 1-222-20-13 | VS 2-20-N8 | 22 | 24 | 21 | 27 | 18.5 | G1/8 | 8 | 13 | 4 | 13.3 |
| 1-222-30-13 | VS 2-30-N8 | 33 | 36 | 30 | 35 | 25 | G1/8 | 8 | 13 | 4 | 19.4 |

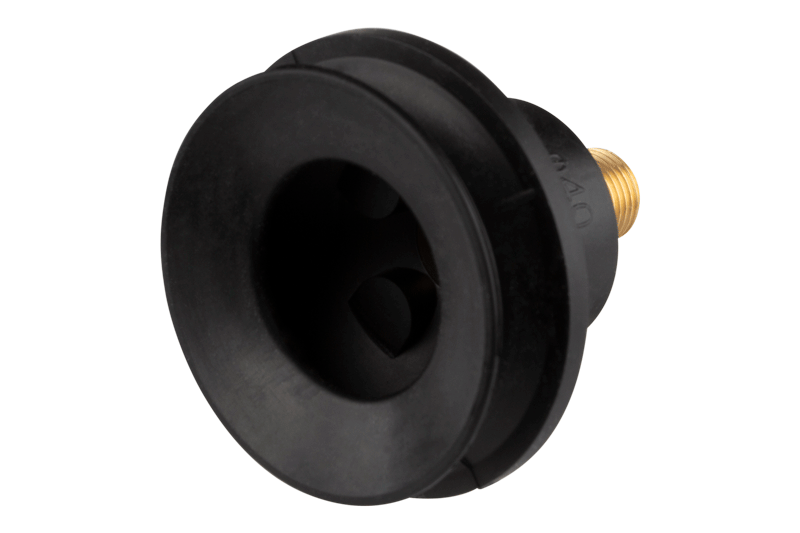

| 1-222-40-13 | VS 2-40-N8 | 42.5 | 45.5 | 30 | 35 | 25 | G1/8 | 8 | 13 | 4 | 24.4 |
| 1-222-50-13 | VS 2-50-N8 | 54 | 59 | 37 | 42 | 29 | G1/8 | 8 | 13 | 5 | 36.7 |
| 1-222-75-14 | VS 2-75-N4 | 78 | 84 | 41.5 | 50 | 26.5 | G1/4 | 10 | 17 | 5 | 112.3 |
| Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No. Cup with Adapter | Cup with Adapter | Cup | Part No. Cup only | Material | Working Area [mm] | Operating [cm2] | Holding Force [N] | PushFit | Tapped |
| 1-222-10-12 | VS 2-10-N5 | VN 2-10-N | 1-222-10-10 | Nitrile | 5.2 | 0.16 | 0.9 | x | - |
| 1-222-15-12 | VS 2-15-N5 | VN 2-15-N | 1-222-15-10 | Nitrile | 7.5 | 0.4 | 2.3 | x | - |
| 1-222-20-13 | VS 2-20-N8 | VN 2-20-N | 1-222-20-10 | Nitrile | 11 | 0.82 | 4.8 | x | - |
| 1-222-30-13 | VS 2-30-N8 | VN 2-30-N | 1-222-30-10 | Nitrile | 17 | 2.27 | 13.4 | x | - |
| 1-222-40-13 | VS 2-40-N8 | VN 2-40-N | 1-222-40-10 | Nitrile | 22.5 | 3.8 | 22.4 | x | - |
| 1-222-50-13 | VS 2-50-N8 | VN 2-50-N | 1-222-50-10 | Nitrile | 32 | 8.68 | 51.1 | x | - |
| 1-222-75-14 | VS 2-75-N4 | VN 2-75-N | 1-222-75-10 | Nitrile | 55 | 23.76 | 139.8 | - | x |
