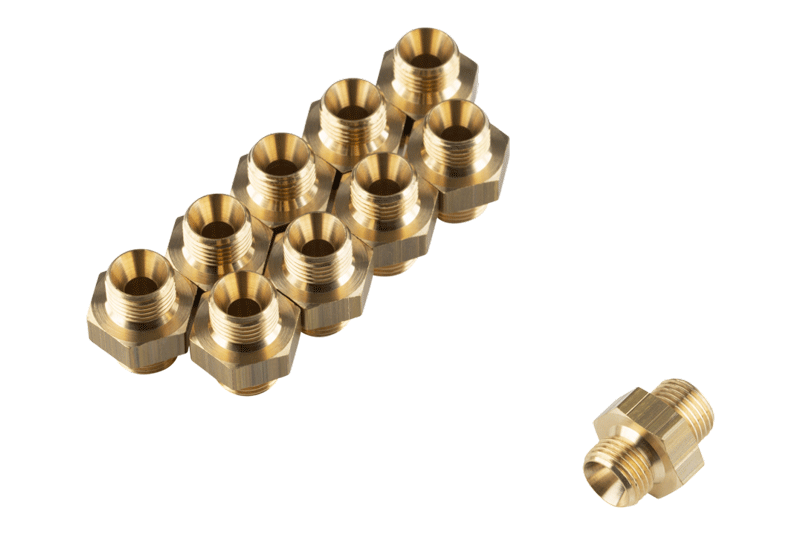

PDN’s are used to connect NON >ASS< vacuum cups with female adapters (nippel) to > ASS< gripper arms.
| Part No. | Description | G1 [mm] ["] | G2 [mm] ["] | Material |
|---|---|---|---|---|
| 1-858-08-00 | PDN M5-M5 | M 5 | M 5 | Brass |
| 1-858-10-00 | PDN 1/8-1/8 | G 1 / 8 | G 1 / 8 | Brass |
| 1-858-12-00 | PDN 1/4-1/4 | G 1 / 4 | G 1 / 4 | Brass |
| 1-858-14-00 | PDN 1/8-M5 | G 1 / 8 | M 5 | Brass |
| 1-858-16-00 | PDN 1/4-1/8 | G 1 / 4 | G 1 / 8 | Brass |
