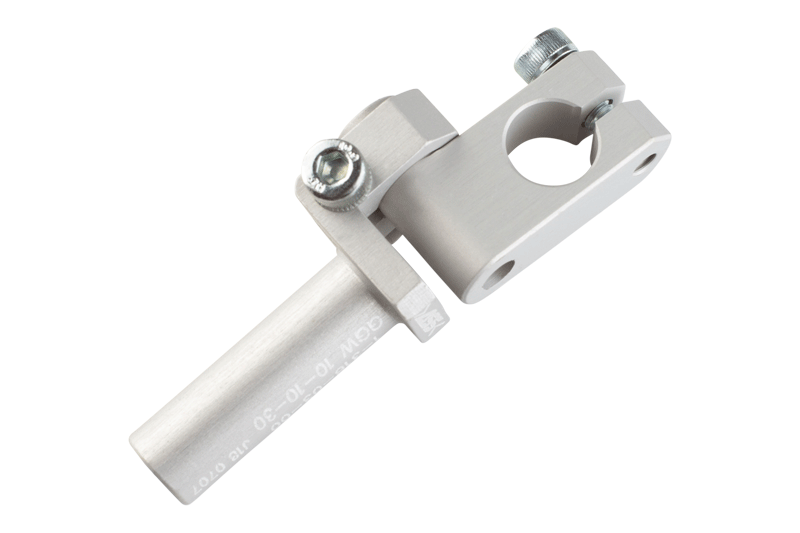

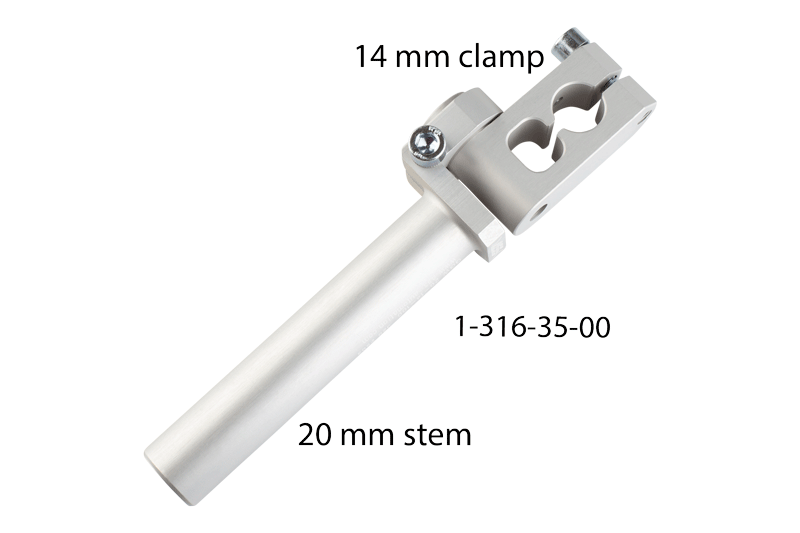

Elbow Gripper Arm with a swivel lock-ring prevents the clamp head to slip out of position. The swivel lock-ring and the clamp use the same allen head screw. Part No 1-316-35-00 features a 20mm stem and a 14mm clamp.

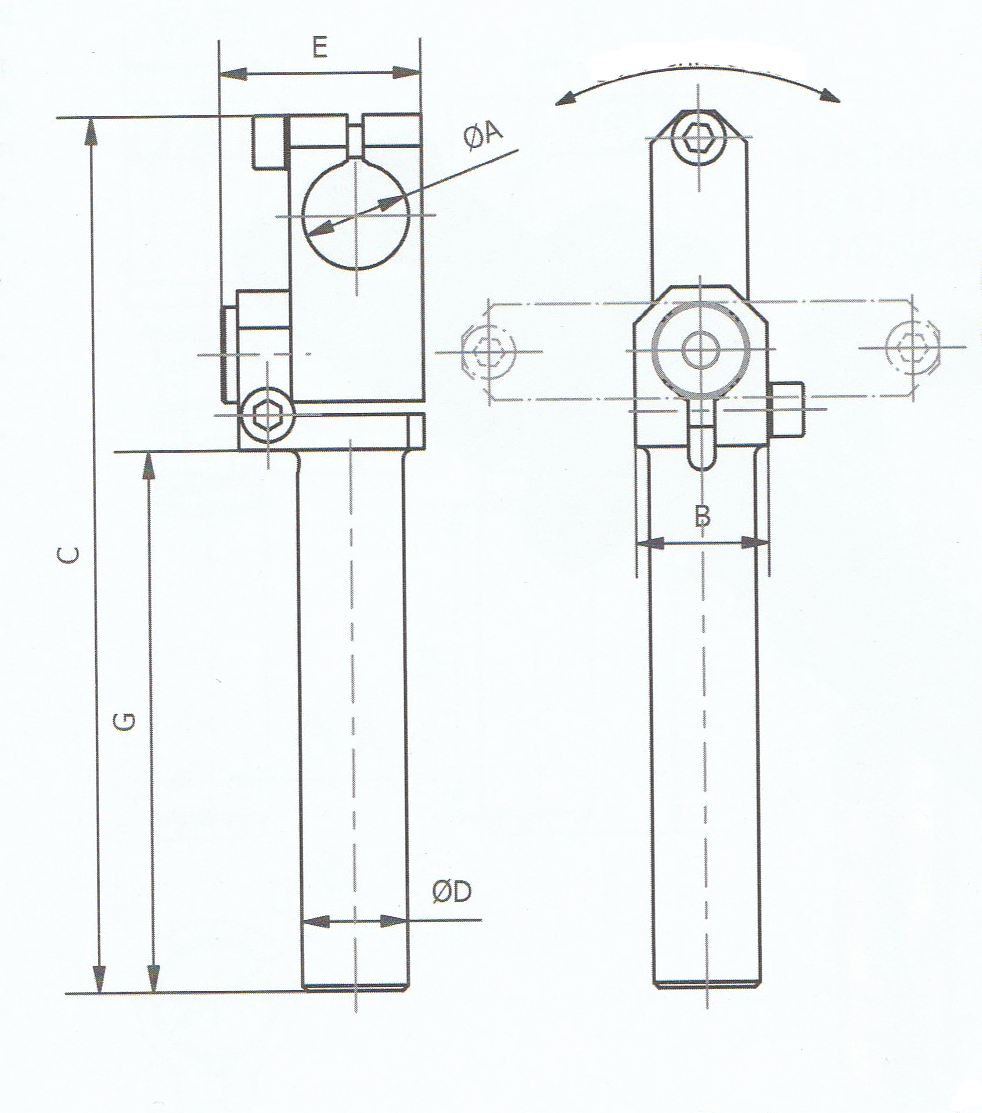

| Part No | Description | A | B | C | D | E | G | MATERIAL | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [g] | |||
| 1-316-03-00 | GGW 10-10-30 | 10 | 15 | 67 | 10 | 23 | 30 | AL | 20 |
| 1-316-06-00 | GGW 10-10-60 | 10 | 15 | 97 | 10 | 23 | 60 | AL | 24 |
| 1-316-09-00 | GGW 10-10-90 | 10 | 15 | 127 | 10 | 23 | 90 | AL | 27 |
| 1-316-21-00 | GGW 14-14-40 | 14 | 20 | 88 | 14 | 30 | 40 | AL | 46 |
| 1-316-24-0 | GGW 14-14-80 | 14 | 20 | 130 | 14 | 30 | 80 | AL | 55 |
| 1-316-27-00 | GGW 14-14-120 | 14 | 20 | 168 | 14 | 30 | 120 | AL | 63 |
| 1-316-35-00 | GGW 20-14-100 | 20 | 25 | 165 | 20 | 38 | 100 | AL | 111 |
| 1-316-39-00 | GGW 20-20-50 | 20 | 25 | 114 | 20 | 38 | 50 | AL | 96 |
| 1-316-42-00 | GGW 20-20-100 | 20 | 25 | 165 | 20 | 38 | 100 | AL | 112 |
| 1-316-45-00 | GGW 20-20-150 | 20 | 25 | 214 | 20 | 38 | 150 | AL | 127 |
