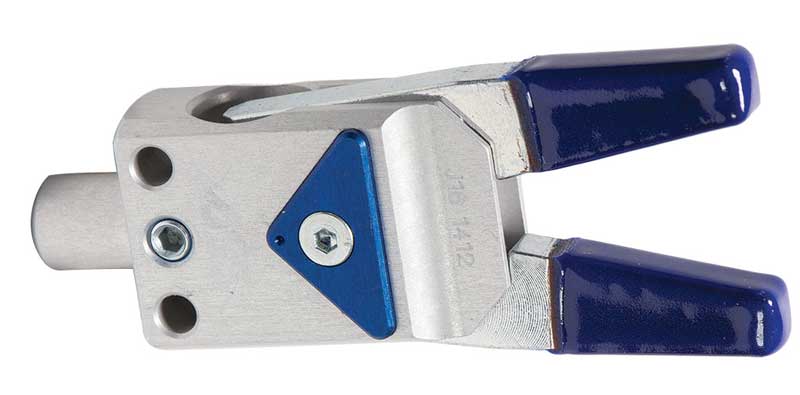

GRZ 10-12 EP with Soft Touch coated jaws
Soft Touch coating consists of a high strength Elastomeric Polyurethane and is applied in a proprietary multi step process in our factory. This coating is abrasion and slip resistant and silicone free. It dramatically reduces or even eliminates marking of high gloss or other sensitive surfaces. EP working temperature is 194F ( 90 C ) and short term temperature resistant of up to 266F ( 130 C )
The bottom picture shows a 10-12 gripper with the optional VLU extension
| Part No. | Description | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [mm] | H [mm] | K [mm] | L [mm] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-412-65-00 | GRZ 10-12-EP | 10 | 16 | 12 | 4 | 22 | 65 | 16.5 | M5 | 4.2 | 15 |
| Part No. | Description | Closing Force Max. [N] | L-System | X-System | Weight [g] | ||||||
| 1-412-65-00 | GRZ 10-12-EP | 28 | x | x | 57.7 |
