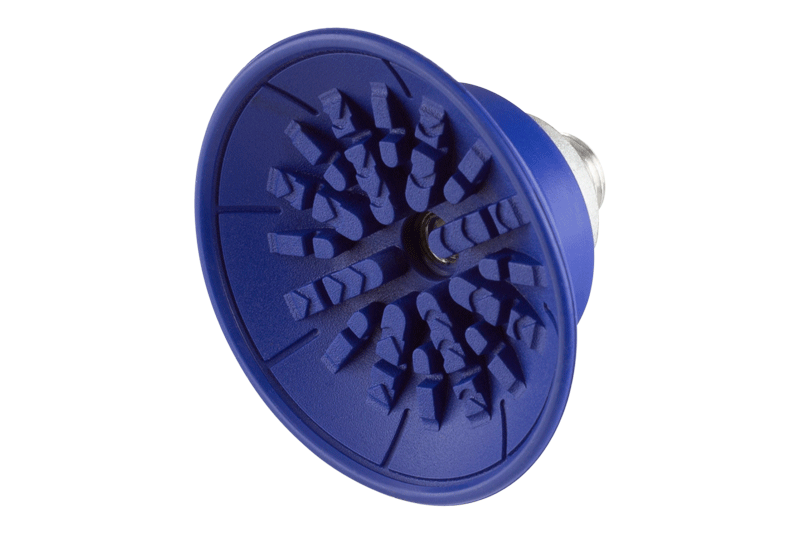

1 bellow vacuum cup for sheet metal
PN is a special design for sheet metal applications.
It can also be used for a plastic application to prevent the part from sliding in EOAT .
These Vacuum Cups are fully intergrated with the ASS EOAT Kit.
Material: PN Perbunan (color: blue)
Material specifications:
***** = Very High
*** = High
* Low
Hardness: 55+/-5
Working Temperature: -30°C to 100°C (-4°F to 212°F)
Tear Resistance: ****
Aging Properties: *****
Abrasion Resistance: ****
Oil & Grease Resistance: ****
Application: Sheet metal
| Part No. | Cup with Adapter | A [mm] | B [mm] | B1 [mm] | B2 [mm] | C ["] | D [mm] | SW [mm] | Material | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1-225-03-00 | VS 1-30 PN 4 | 30 | 13 | 20 | 17 | G1/4 | 10 | 17 | PN | 31 |
| 1-225-06-00 | VS 1-40 PN 4 | 40 | 15 | 22 | 18 | G1/4 | 10 | 17 | PN | 34 |
| 1-225-09-00 | VS 1-50 PN 4 | 50 | 18 | 28 | 24 | G1/4 | 10 | 22 | PN | 51 |
| 1-225-12-00 | VS 1-60 PN 4 | 60 | 20 | 31 | 26 | G1/4 | 10 | 22 | PN | 68 |
| 1-225-15-00 | VS 1-80 PN 4 | 80 | 25 | 36 | 30 | G1/4 | 10 | 22 | PN | 88 |
| 1-225-18-00 | VS 1-100 PN 4 | 100 | 26 | 36 | 30 | G1/4 | 10 | 22 | PN | 100 |
| 1-225-21-00 | VS 1-125 PN 4 | 125 | 34 | 43 | 36 | G1/4 | 10 | 22 | PN | 185 |
