PL cups are made of ACLATHAN, a very stiff material. Shore hardness is 72 compared with 32 for Silicone.They are temperature resistant up to 176F (80 C) and are available with two or three bellows.
2 Bellow Vacuum Cups
| Cup with Adapter Part No. | Cup with Adapter Description | Cup Only Part No | Cup Only Description | Material | Working Area [mm] | Operating [cm2] | Holding Force [N] | Weight [g] | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1-222-20-63 | VS 2-20-PL8 | 1-222-20-60 | VN 2-20-PL | Aclathan | 11 | 0.82 | 4.8 | 14 | ||
| 1-222-30-63 | VS 2-30-PL8 | 1-222-30-60 | VN 2-30-PL | Aclathan | 17 | 2.27 | 13.4 | 18 | ||
| 1-222-50-63 | VS 2-50-PL8 | 1-222-50-60 | VN 2-50-PL | Aclathan | 32 | 8.68 | 51.1 | 31 | ||
| Part No. | Description | A1 [mm] | A2 [mm] | B [mm] | B1 [mm] | B2 [mm] | C ["] | D [mm] | SWE [mm] | SWF [mm] |
| 1-222-20-63 | VS 2-20-PL8 | 20 | 24 | 21 | 27 | 18.5 | G1/8 | 8 | 13 | 4 |
| 1-222-30-63 | VS 2-30-PL8 | 30 | 36 | 30 | 35 | 25 | G1/8 | 8 | 13 | 4 |
| 1-222-50-63 | VS 2-50-PL8 | 50 | 59 | 37 | 42 | 29 | G1/8 | 8 | 13 | 5 |

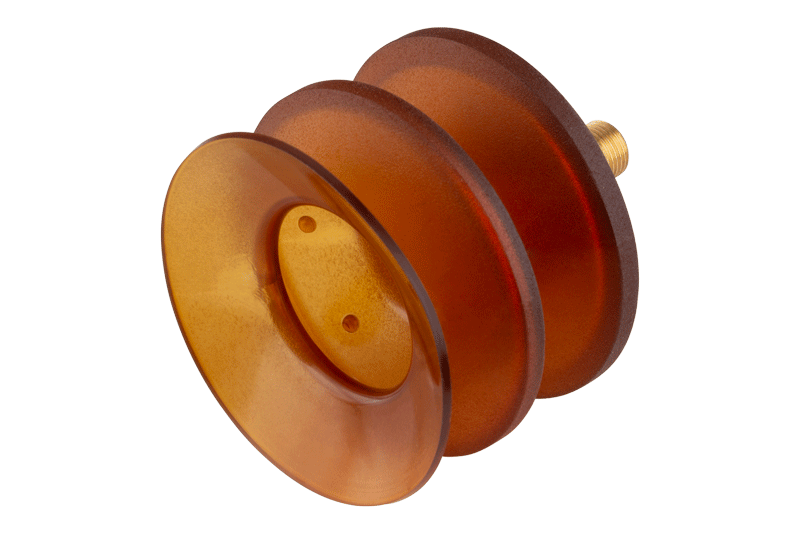

3 Bellow Vacuum Cups
| Part No. Cup with Adapter | Description Cup with Adapter | Part No. Cup only | Description Cup only | Material | Working Area [mm] | Operating [cm2] | Holding Force [N] | Weight [g] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-223-20-62 | VS 3-20-PL5 | 1-223-20-60 | VN 3-20-PL | Aclathan | 10.8 | 0.65 | 3.8 | 5.3 | |||||||||
| 1-223-20-63 | VS 3-20-PL8 | 1-223-20-60 | VN 3-20-PL | Aclathan | 10.8 | 0.65 | 3.8 | 12.3 | |||||||||
| 1-223-30-63 | VS 3-30-PL8 | 1-223-30-60 | VN 3-30-PL | Aclathan | 17.8 | 2.01 | 11.8 | 18.9 | |||||||||
| 1-223-60-63 | VS 3-60-PL8 | 1-223-60-60 | VN 3-60-PL | Aclathan | 30.8 | 6.72 | 39.6 | 49.5 | |||||||||
| Dimensions | |||||||||||||||||
| Part No. | Cup with Adapter | A [mm] | B [mm] | B [mm] | B2 [mm] | C [mm] ["] | D [mm] | SWE [mm] | SWF [mm] | ||||||||
| 1-223-20-62 | VS 3-20-PL5 | 20 | 23 | Aclathan | 28 | 20 | M5 | 5 | 7 | 2 | |||||||
| 1-223-20-63 | VS 3-20-PL8 | 20 | 23 | Aclathan | 28 | 20 | G1/8 | 8 | 13 | 3 | |||||||
| 1-223-30-63 | VS 3-30-PL8 | 30 | 37.5 | Aclathan | 42.5 | 30 | G1/8 | 8 | 13 | 5 | |||||||
| 1-223-60-63 | VS 3-60-PL8 | 60 | 56 | Aclathan | 61 | 37 | G1/8 | 8 | 13 | 5 |
