| Part No. | Description | A | B | C | H | E | F | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [g] | ||
| 1-414-15-00 | AAE 14 | 50 | 32 | 50 | 15 | GRZ 14 | PLASTIC | 47 |
| 1-417-15-00 | AAE 20 | 60 | 37 | 61.5 | 22 | GRZ 20-20 | PLASTIC | 60 |
In order to overcome an unwanted side effect of grippers with a high closing force, is that especially hot and soft plastic materials have the tendency to stick at the open gripper jaws. In order to avoid this, ASS offers a sprue-push-off device.

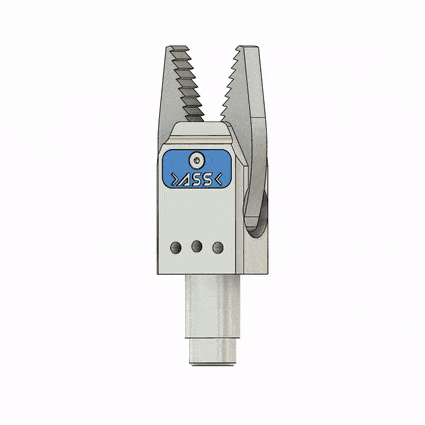

The AAE Sprue Pusher is 3D printed from a durable plastic material in order to save weight. It is actuated by a pneumatic micro barrel cylinder. A spring returns the pusher back into its default position.
The AAE Sprue Pusher is available for the GRZ 10-12, 14 and the GRZ 20-20 gripper models.
The AAE Kit includes:
-
sprue-push unit
-
M3 fitting for 4mm hose
-
hose reducer from 6mm to 4mm hose
-
3′ (1 meter) 4mm hose
