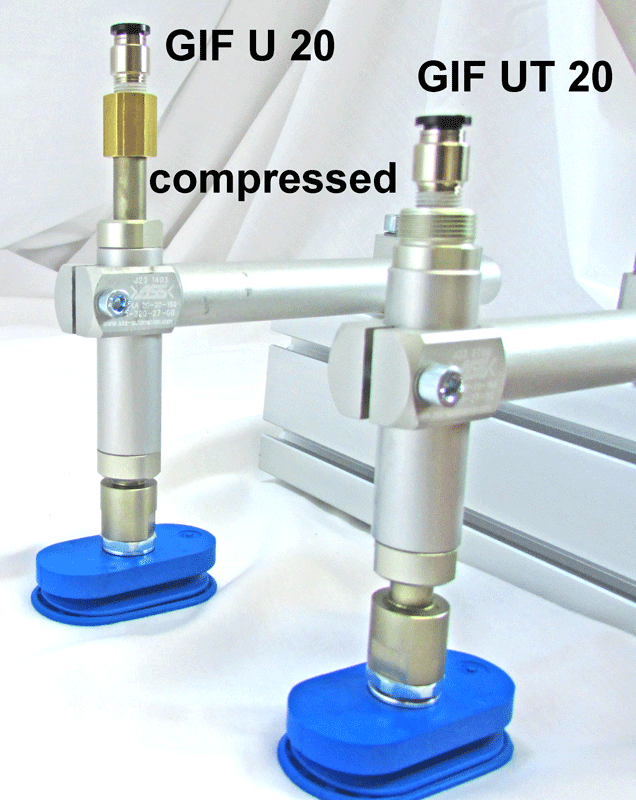

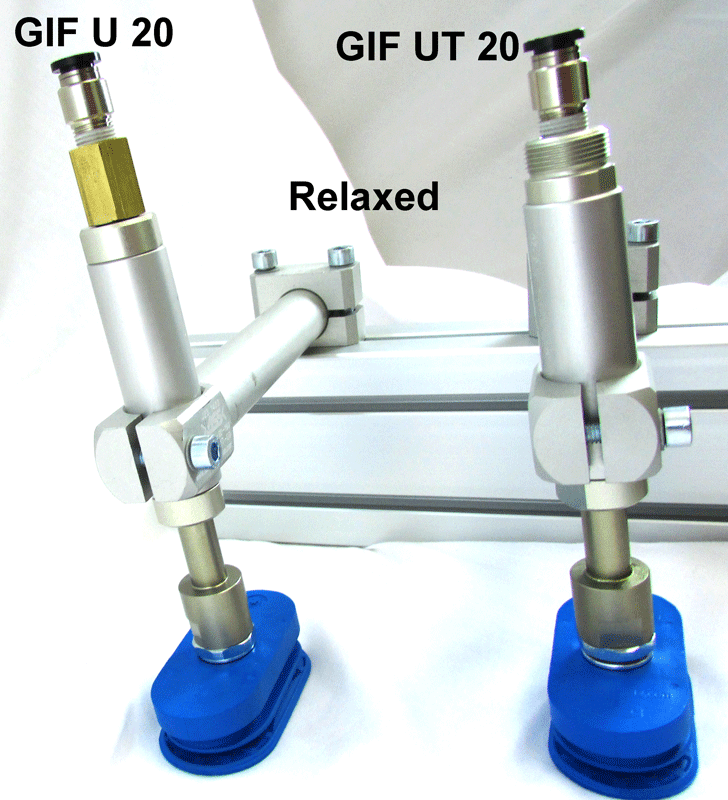

- GIF U is a non rotating suspension with an internal spring. The shaft dives through the barrel
- GIF UT is a non rotating suspension with an internal spring. The shaft dives into the barrel
- GIF UT has an extendable reach, if used with a VLR Extension tube
- GIF feature an anodized aluminum clampable body and coated aluminum shaft
- The material composition of the coated shaft and the bushing require no lubrication
| Part No | Description | A | L1 | L2 | G1 | G2 | G3 | H | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | ["] | ["] | [mm] | [mm] | [g] | ||
| 1-359-15-00 | GIF U 20-1/4-1/8-20 | 20 | 62 | 133 | G 1/4 | G 1/8 | - | 20 | 76 |
| 1-358-15-00 | GIF UT 20-1/4-1/8-20 | 20 | 62 | 120 | G 1/4 | G 1/8 | M17x1 | 20 | 55 |
