The WSL G Long Angle Clamp features an integrated ball joint that provides a rotational adjustment feature.
It eliminates the need of additional hardware and provides cost and weight savings compared to traditional clamp designs.

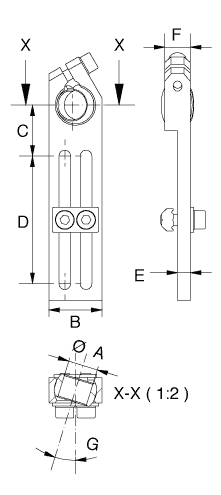

| Part No. | Description | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G [°] | Material | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1-106-03-00 | WSL G X 10-50 U | 10 | 20 | 20 | 50 | 6 | 12 | 0-13 | Aluminum | 41 |
| 1-106-06-00 | WSL G X 14-60 U | 14 | 25 | 24 | 60 | 6 | 12 | 0-17 | Aluminum | 55 |
| 1-106-09-00 | WSL G X 20-60 U | 20 | 35 | 29 | 60 | 10 | 20 | 0-19 | Aluminum | 115 |
