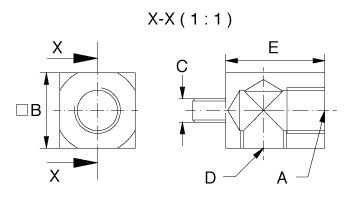

Dimension C = mounting on (KHZ) cylinder
-
Dimension A = connecting a vacuum cup

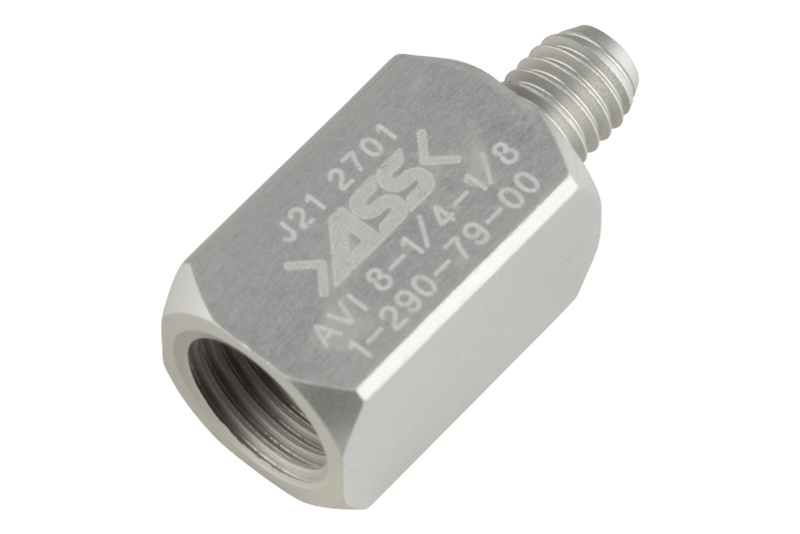

AVI Adapter are used to mount a vacuum cup with a male adapter to a KHZ cylinder

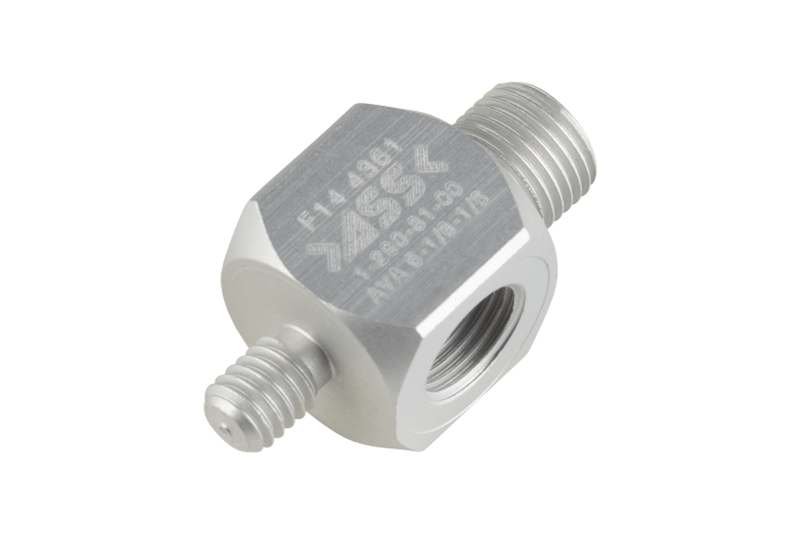

AVA Adapter are used to mount a vacuum cup with a female adapter to a KHZ cylinder
| Part No. | Description | A [mm] ["] | B [mm] | C [mm] | D [mm] | E [mm] | Material | Weight [g] |
|---|---|---|---|---|---|---|---|---|
| 1-290-73-00 | AVI 5-5-5 | M 5 | 8 | M 5 | M5 | 12 | Aluminum | 5.0 |
| 1-290-75-00 | AVI 3-5-5 | M 5 | 8 | M 3 | M5 | 12 | Aluminum | 4.3 |
| 1-290-76-00 | AVI 5-1/8-1/8 | G 1/8 | 16 | M 5 | G1/8 | 21 | Aluminum | 32.0 |
| 1-290-77-00 | AVI 8-1/8-1/8 | G 1/8 | 16 | M 8 | G1/8 | 21 | Aluminum | 39.8 |
| 1-290-79-00 | AVI 8-1/4-1/8 | G 1/4 | 16 | M 8 | G1/8 | 26 | Aluminum | 35.0 |
| Part No. | Description | A ["] | B [mm] | C [mm] | D ["] | E [mm] | Material | Weight [g] |
|---|---|---|---|---|---|---|---|---|
| 1-290-81-00 | AVA 6-1/8-1/8 | G 1 / 8 | 16 | M 6 | G 1 / 8 | 16 | Aluminum | 27.8 |
| 1-290-83-00 | AVA 8-1/8-1/8 | G 1 / 8 | 16 | M 8 | G 1 / 8 | 16 | Aluminum | 28.8 |
| 1-290-85-00 | AVA 6-1/4-1/8 | G 1 / 4 | 16 | M 6 | G 1 / 8 | 16 | Aluminum | 32.4 |
| 1-290-87-00 | AVA 8-1/4-1/8 | G 1 / 4 | 16 | M 8 | G 1 / 8 | 16 | Aluminum | 32.8 |
