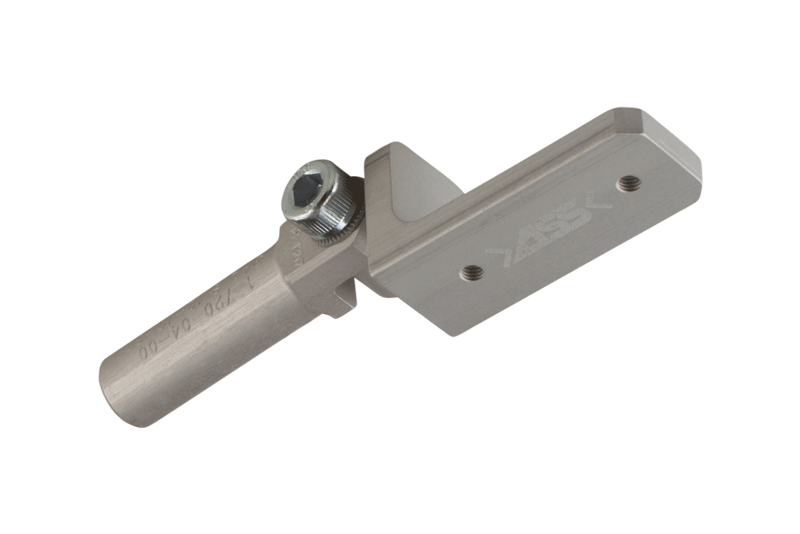

The GAZ-S Swivel Arm is designed for mounting KHZ and SZD cylinders. It provides 180 degree of adjustment for the cylinder. GAZ-S is made of aluminum.
| Part No | Description | Compatible | A | B | C | D | L | Swivel | Weight |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | Degree | [g] | |||
| 1-720-04-00 | GAZ S 12-10-30 | KHZ/SZD 12 | 10 | 22 | 37 | 15 | 30 | 180 | 17 |
| 1-720-07-00 | GAZ S 12-10-60 | KHZ/SZD 12 | 10 | 22 | 37 | 15 | 60 | 180 | 20 |
| 1-720-10-00 | GAZ S 12-10-90 | KHZ/SZD 12 | 10 | 22 | 37 | 15 | 90 | 180 | 24 |
| 1-720-13-00 | GAZ S 12-14-40 | KHZ/SZD 12 | 14 | 22 | 37 | 13 | 40 | 180 | 38 |
| 1-720-16-00 | GAZ S 12-14-80 | KHZ/SZD 12 | 14 | 22 | 37 | 13 | 60 | 180 | 46 |
| 1-720-19-00 | GAZ S 12-14-120 | KHZ/SZD 12 | 14 | 22 | 37 | 13 | 90 | 180 | 55 |
| 1-720-22-00 | GAZ S 20-20-50 | KHZ/SZD 20 | 20 | 36 | 52 | 20 | 50 | 180 | 80 |
| 1-720-25-00 | GAZ S 20-20-100 | KHZ/SZD 20 | 20 | 36 | 52 | 20 | 100 | 180 | 96 |
| 1-720-28-00 | GAZ S 20-20-150 | KHZ/SZD 20 | 20 | 36 | 52 | 20 | 150 | 180 | 111 |
| 1-720-31-00 | GAZ S 32-20-50 | KHZ/SZD 32 | 20 | 48 | 66 | 20 | 50 | 180 | 86 |
| 1-720-34-00 | GAZ S 32-20-100 | KHZ/SZD 32 | 20 | 48 | 66 | 20 | 100 | 180 | 101 |
| 1-720-37-00 | GAZ S 32-20-150 | KHZ/SZD 32 | 20 | 48 | 66 | 20 | 150 | 180 | 117 |
