LRS 18 PHOTOELECTRIC SENSOR

Home | Components |  Electrical  |  LRS 18 PHOTOELECTRIC SENSOR

Search

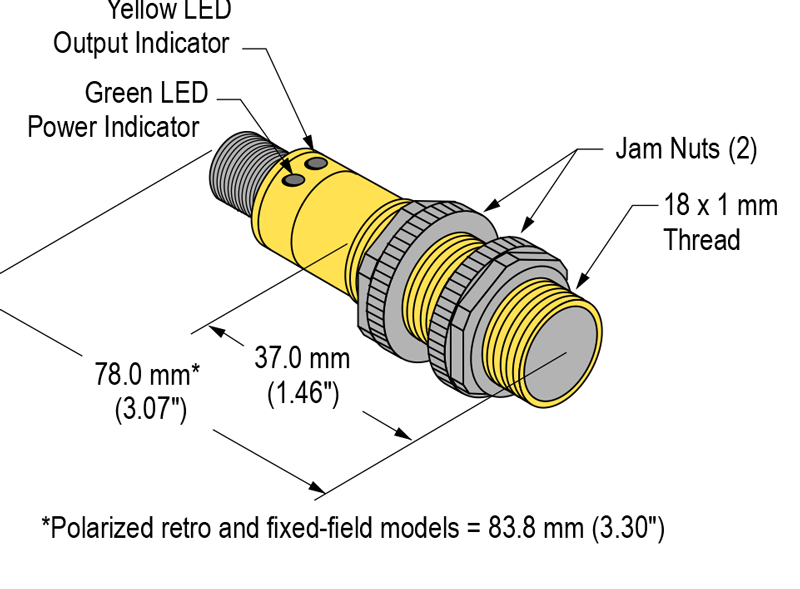

LRS 18 is a photoelectric sensor with non-adjustable sensitivity. It has a light emitter + receiver and is ideal for contactless part present detection of non ferrous parts with a sensing range of up to 2 inches (50mm). The provided sleeve allows the LRS 18 to be installed into a 20mm  GLA Elbow Gripper Arm  20mm . It has a M12 4 pin male connector and requires one of the following extension cables. KG 18-4 or KW 18-4
Part No.DescriptionU [V] DCI [mA] DCRange [mm]OutputSwitch TypeWeight [g]
1-802-04-00LRS 18 PNP10--303550PNPLight or Dark20.1
1-802-05-00LRS 18 NPN10--303550NPNLight or Dark20.1
