Thrust-Cut Nipper

Home | Components |  NIPPER BODIES & MORE  |  Thrust-Cut Nipper

Search

DescriptionABCDEFGHIJKLMNO
TC-40528667.93.238.122.825.7946.32847.712190.921.29.5
TC-6377115102076.225.432.8198234130.721.5332.432.212.7

Thrust Cut Nippers for Fan Gates

Thrust Cut nippers, available with optional heat package, are designed to withstand

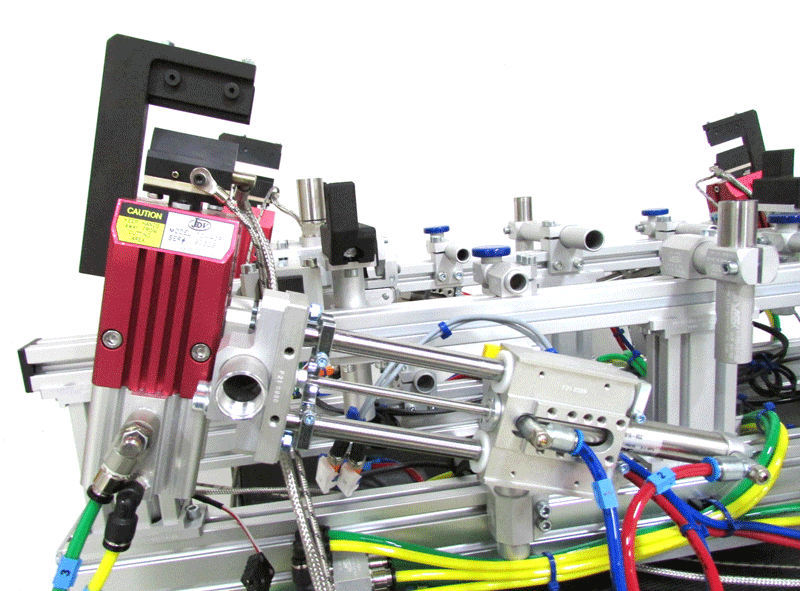

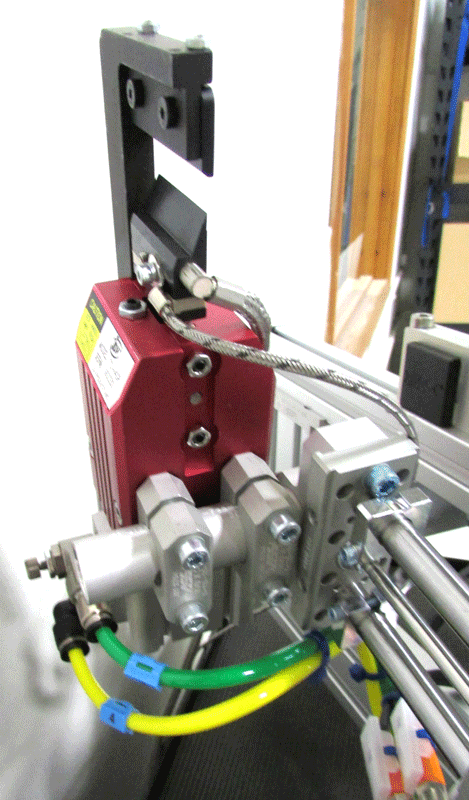

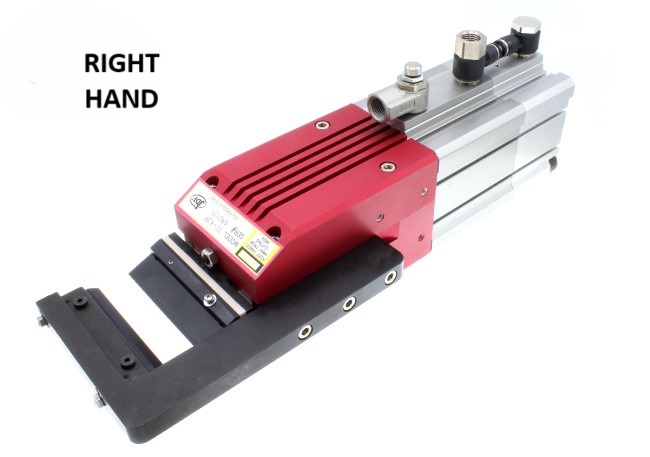

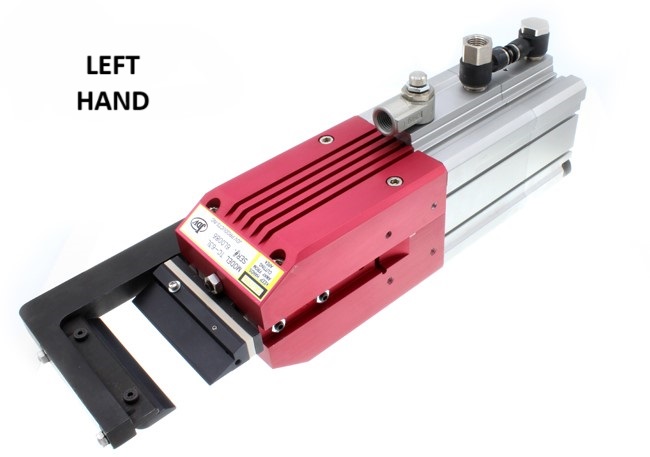

the demands of high volume production. The TC-63 nippers are capable of cutting fan gates as wide as  3 inches (76 mm), while the TC-40 can cut fan gates as wide as 1-1/2” (38 mm). TC nippers are available in Right Hand and Left Hand versions. (Picture above: TC on the left = LH version and TC on the right = RH version) Please indicate when ordering.
  • Standard Features:
    ♦ High speed steel blades (TC-63)
    ♦ Alloy steel blades (TC-40)
    ♦ Double acting cylinders Tandem 63mm (TC-63) provides twice the cutting force
  • ♦Single cylinder 40mm on the TC-40
  • ♦ Teflon® coated blades

Send us your sample parts and we will bench test to determine the best solution for you
