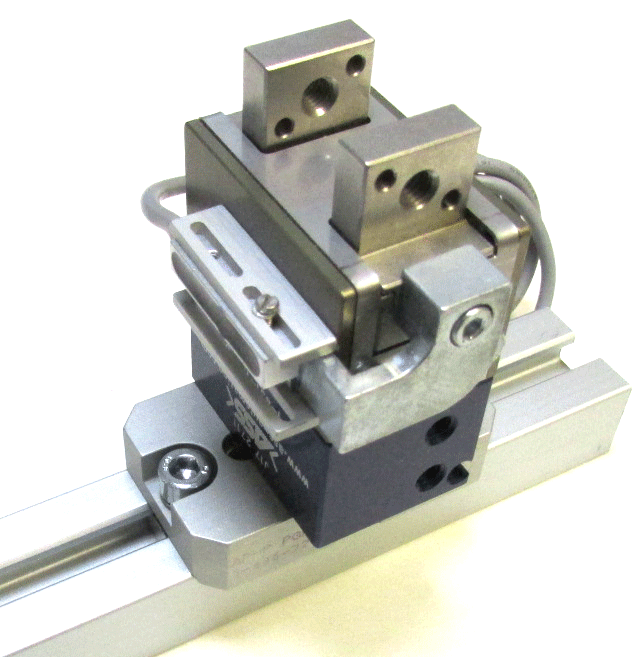

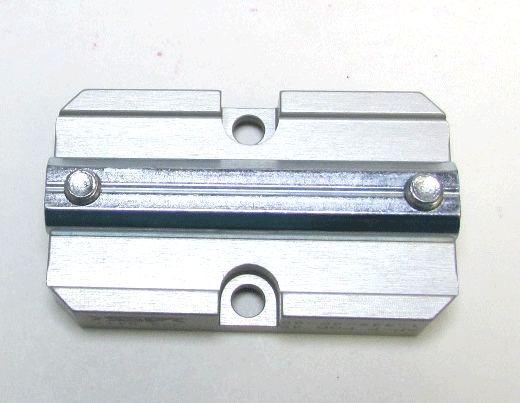

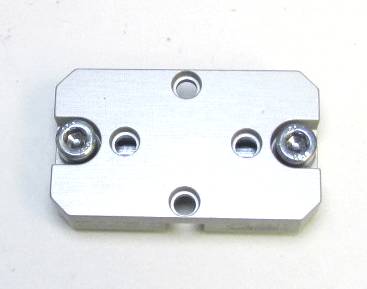

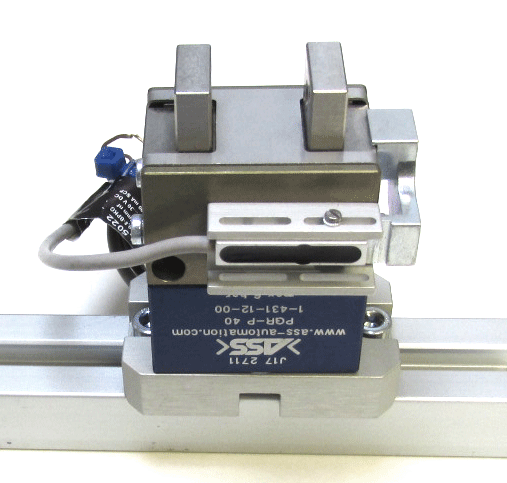

This adapter connects the PGRP parallel gripper to our X profile. The AP-P-PGR 64 connects our largest parallel gripper to JU profile. The gripper can be mounted parallel or vertical to the profile.

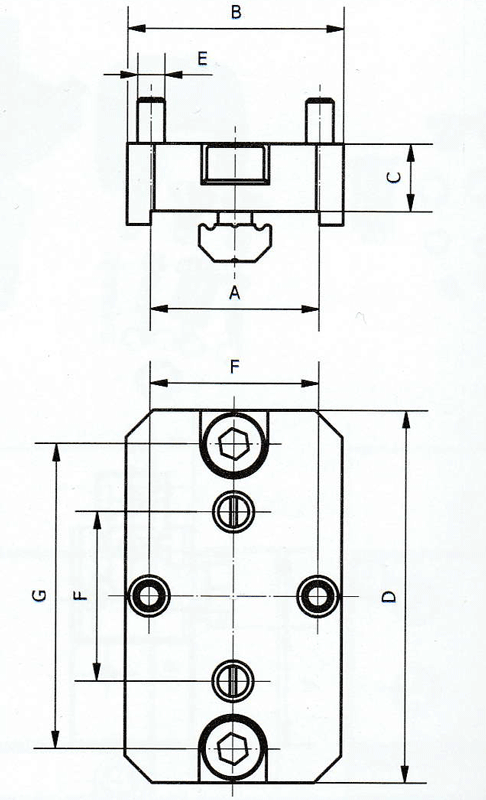

| Part No | Description | A | B | C | D | E | F | G | H | I | FOR | MATERIAL | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | PROFILE | [g] | |||

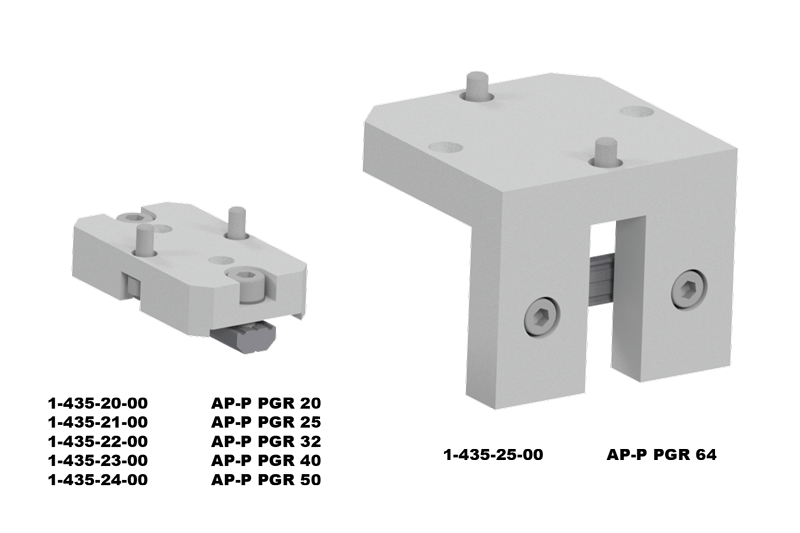

| 1-435-20-00 | AP-PGR 20 | 25 | 30 | 12 | 40 | M3 | 15 | 31 | X | AL | 43 | ||
| 1-435-21-00 | AP-PGR 25 | 25 | 30 | 12 | 48 | M3 | 20 | 38 | X | AL | 53 | ||
| 1-435-22-00 | AP-PGR 32 | 25 | 32 | 12 | 55 | M4 | 25 | 45 | X | AL | 64 | ||
| 1-435-23-00 | AP-PGR 40 | 25 | 40 | 12 | 60 | M4 | 32 | 50 | X | AL | 82 | ||
| 1-435-24-00 | AP-PGR 50 | 25 | 50 | 14 | 70 | M5 | 40 | 60 | X | AL | 147 | ||
| 1-435-25-00 | AP-PGR 64 | 64 | 12 | 64 | M5 | 52 | 40 | 40 | 12 | JU | AL | 213 |
