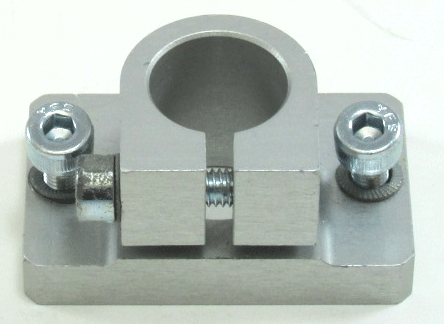

These adapters connect PGR parallel grippers to a round tube ( VLR) which can be used in conjunction with our clamps. Scroll all the way down for recommended accessories.

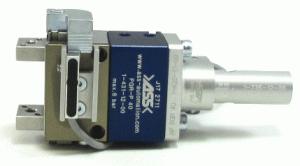

Parallel gripper with AP mounting bracket & VLR extension tube
| Part No. | Description | A [mm] | B [mm] | C [mm] | D [mm] | Material | Weight [g] |
|---|---|---|---|---|---|---|---|
| 1-435-03-00 | AP PGR 20 | 10 | 20 | 18 | 15 | Aluminum | 10 |
| 1-435-06-00 | AP PGR 25 | 10 | 26 | 18 | 14 | Aluminum | 9 |
| 1-435-09-00 | AP PGR 32 | 14 | 32 | 22 | 17 | Aluminum | 15.5 |
| 1-435-12-00 | AP PGR 40 | 14 | 40 | 25 | 17 | Aluminum | 24 |
| 1-435-15-00 | AP PGR 50 | 20 | 50 | 30 | 20 | Aluminum | 38.5 |
| 1-435-18-00 | AP PGR 64 | 20 | 64 | 35 | 20 | Aluminum | 55 |
