The floating trigger plate improves the sensing capability and is standard on all other ASS gripper with jaw sensor.
Remarks:
-
Aggressive serration
-
NEW DESIGN: Sensor is mechanically triggered by a floating trigger plate*
-
Single action
-
With sensor and plug
-
Extension cable KG 8-3 2m (6 feet) length is included
-
Closing force at 6 bar
-
Maximum air pressure is 6 bar
-
Use dry and filtered air only
-

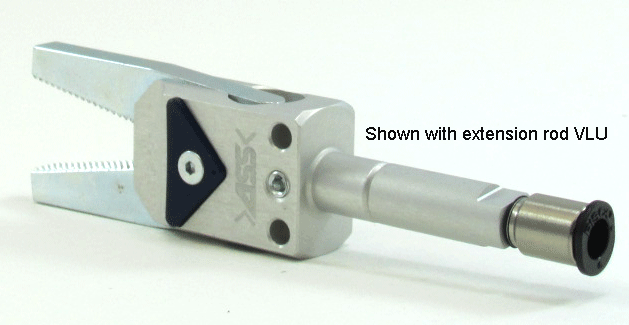

One picture shows a gripper with the optional VLU extension
| Part No. | Description | Closing Force Max. [N] | L- System | X- System | A [mm] | C [mm] | D [mm] | E [mm] | F [mm] |
|---|---|---|---|---|---|---|---|---|---|
| 1-412-40-00 | GRZ 10-12 SCFS PNP | 28 | x | x | 10 | 12 | 4 | 22 | 65 |
| 1-412-45-00 | GRZ 10-12 SCFS NPN | 28 | x | x | 10 | 12 | 4 | 22 | 65 |
| Part No. | Description | G [mm] | G1 [mm] | H [mm] | K [mm] | L [mm] | M [mm] | N [mm] | Weight [g] |
| 1-412-40-00 | GRZ 10-12 SCFS PNP | 16.5 | 1.5 | M5 | 4.2 | 15 | 22 | 4.5 | 58 |
| 1-412-45-00 | GRZ 10-12 SCFS NPN | 16.5 | 1.5 | M5 | 4.2 | 15 | 22 | 4.5 | 58 |
