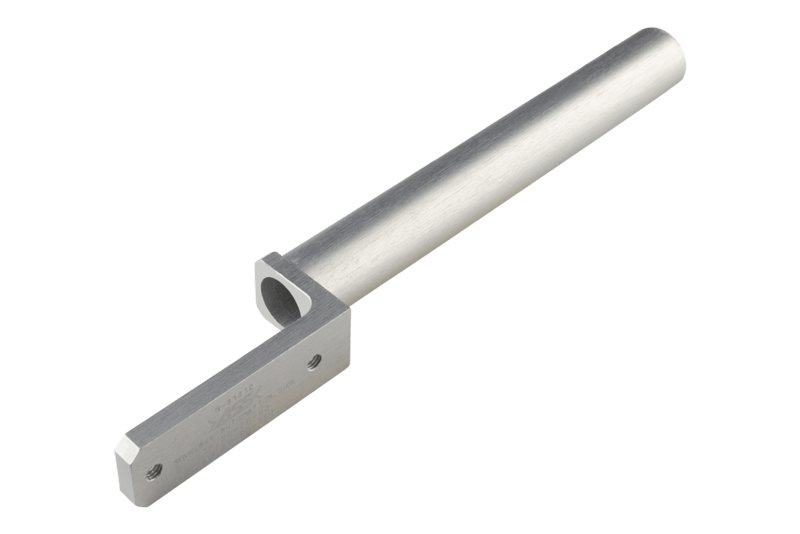

The GAZ-S Swivel Arm is designed for mounting KHZ and SZD cylinders
| Part No. | Description | Compatible With | LSystem | XSystem | JU-System | A [mm] | B [mm] | C [mm] | D [mm] | L [mm] | Material | Weight [g] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-720-03-00 | GAZ 12-10-30 | KHZ/SZD12 | x | x | - | 10 | 22 | 37 | 12.5 | 30 | Aluminum | 12.7 |
| 1-720-06-00 | GAZ 12-10-60 | KHZ/SZD12 | x | x | - | 10 | 22 | 37 | 12.5 | 60 | Aluminum | 16.8 |
| 1-720-09-00 | GAZ 12-10-90 | KHZ/SZD12 | x | x | - | 10 | 22 | 37 | 12.5 | 90 | Aluminum | 22.2 |
| 1-720-12-00 | GAZ 12-14-40 | KHZ/SZD12 | - | x | - | 14 | 22 | 37 | 12.5 | 40 | Aluminum | 16.3 |
| 1-720-15-00 | GAZ 12-14-80 | KHZ/SZD12 | - | x | - | 14 | 22 | 37 | 12.5 | 80 | Aluminum | 24.3 |
| 1-720-18-00 | GAZ 12-14-120 | KHZ/SZD12 | - | x | - | 14 | 22 | 37 | 12.5 | 120 | Aluminum | 32.6 |
| 1-720-21-00 | GAZ 20-20-50 | KHZ/SZD20 | - | x | x | 20 | 36 | 52 | 20 | 50 | Aluminum | 37.7 |
| 1-720-24-00 | GAZ 20-20-100 | KHZ/SZD20 | - | x | x | 20 | 36 | 52 | 20 | 100 | Aluminum | 51.7 |
| 1-720-27-00 | GAZ 20-20-150 | KHZ/SZD20 | - | x | x | 20 | 36 | 52 | 20 | 150 | Aluminum | 66.7 |
| 1-720-30-00 | GAZ 32-20-50 | KHZ/SZD32 | - | x | x | 20 | 48.1 | 66 | 20 | 50 | Aluminum | 42.3 |
| 1-720-33-00 | GAZ 32-20-100 | KHZ/SZD32 | - | x | x | 20 | 48.1 | 66 | 20 | 100 | Aluminum | 57.5 |
| 1-720-36-00 | GAZ 32-20-150 | KHZ/SZD32 | - | x | x | 20 | 48.1 | 66 | 20 | 150 | Aluminum | 72.6 |
