| Part No. | Description | Size | Version | Air Ports | Weight | Material |
|---|---|---|---|---|---|---|
| [mm] | [g] | |||||
| 1-021-09-00 | SWH G 90 | 90 | EOAT Side | 8 x G 1/8 | 212 | AL |
| 1-020-08-00 | SWH RVR 90 | 90 | Robot Side with Push Lock & Check Valves | 8 x G 1/8 | 365 | AL |
| 9-07-020-023-0 | SWH RV 90 PR | 90 | Robot Side with Pull Lock & Check Valves | 8 x G 1/8 | 330 | AL |
SWH 90 Medium Semi Automatic Quick Changer
It simplifies the change of End-of-Arm Tools. No more mix up of hoses and cables. This medium size version SWH 90 is recommended for a 44 LBS (20 KG) payload. An electrical interface adapter is available as well as pre-drilled base plates, profile mounts and storage hangers.
The SWH RVR 90 features two different safety locking mechanisms against unintentional opening.
-

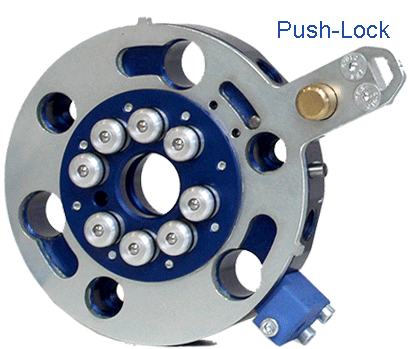

Push-Button Lock: Engagement occurs instantly upon pressing the quick-release button.
-

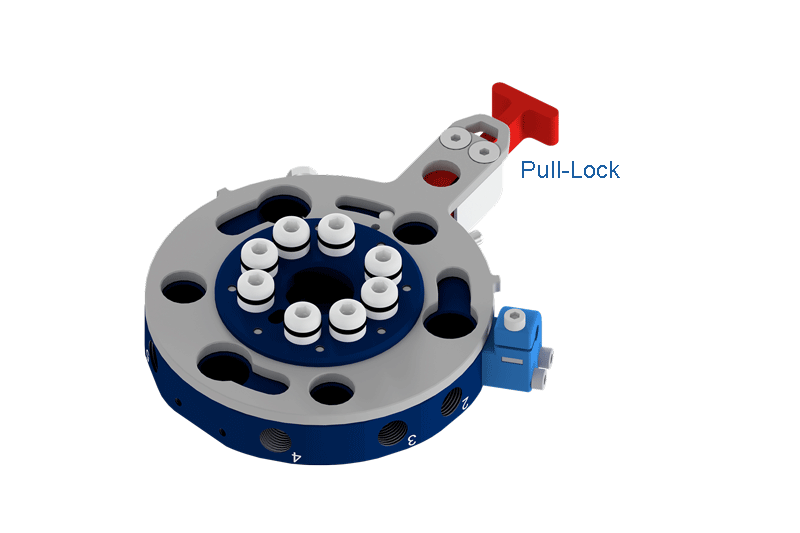

Pull-Lever Lock: Manual leverage creates a mechanical barrier against accidental decoupling in tight spaces
All air-ports have build-in check valves which turn the air circuit off when the EOAT side is removed.
An optional sensor bracket in conjunction with an IRK 4 proximity sensor can provide a signal that the quick changer is locked.
Please see below for more accessories
